Direct Fix 6 Sets (8 Panel GMK)
Foundation
Log in or register for trade discounts!

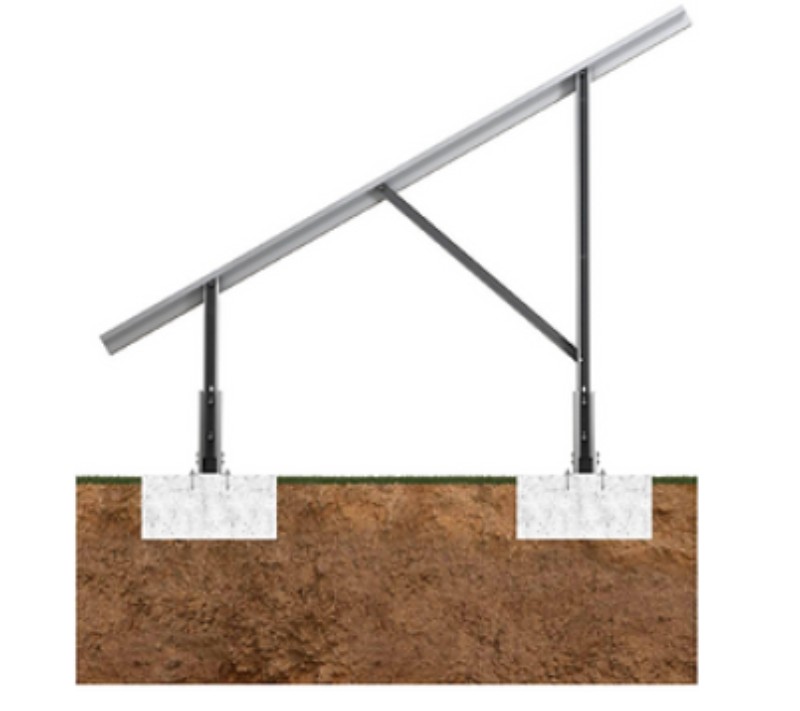

Quantity:Solarport Direct Fix is used to mount Solarport's uprights directly on to a concrete base. These are arranged separately to the pre-picked systems.
Applicable with: Twin post systems
Suitable for: Non-cracked concrete foundations ranging between C20/25 &CS0/60
Installation: Torque controlled expansion bolts fitted into concrete with hand tools
Material: Adjustable upright: S450 grade steel. Coatings: ZM800
Bolts: High tensile steel hot dipped galvanised to EN 1461 Corrosion protection to be determined from site location
Dimensions: M12 x 145mm torque controlled expansion bolts
Design codes: Designed in accordance with BS EN 1991-1-4:2005 +A1:2010. BS EN 1090 & BS EN 1991 Parts 1, 3 & 7 (Eurocodes)
Concrete spec needed:
Front pads – 900mm x 550mm x 300mm thick - the bolt will go in 130mm.
***Please note: ALL Solarport systems must be registered with SOLARPORT to avail of the warranty.
