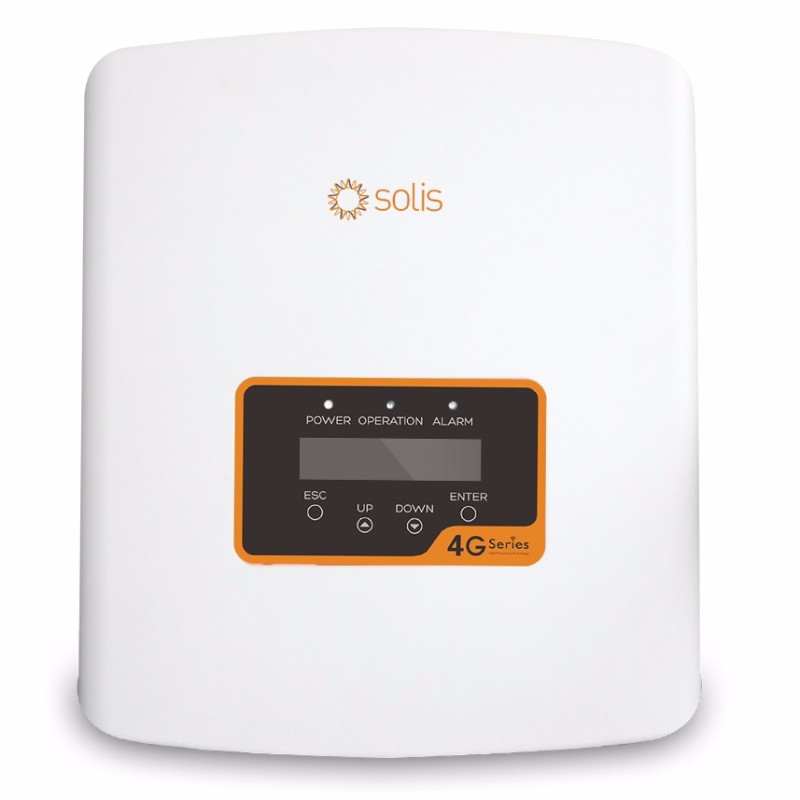

Solis 1.5kW Mini 4G Single Tracker with DC Isolator

1 MPPT

332.80

Quantity:
BUY!

The Solis 1500 will handle up to 1.8kW of PV, and still boasts a compact and attractive housing. This is the single MPPT version for single orientation arrays.

A wide MPPT input range of 50-500V and IP65 rating allow for great levels of flexibility when designing an array.

Export limiting is also available with the use of a separate CT clamp.

This version includes a built-in DC switch for a quick and neat installation.

Specifications:

  • DC Switch included
  • Maximum efficiency of 97.5%
  • IP65
  • Compact design
  • Startup Voltage: 60V
  • Max DC Voltage: 600V
  • Max input current: 11A
  • Dimensions: 373 x 310 x 160 mm
  • Weight: 7.4kg
  • Warranty: 5 years
