Midea M-Thermal 6kW R32 Monobloc
R32 Monobloc
Log in or register for trade discounts!
Quantity:BUY!

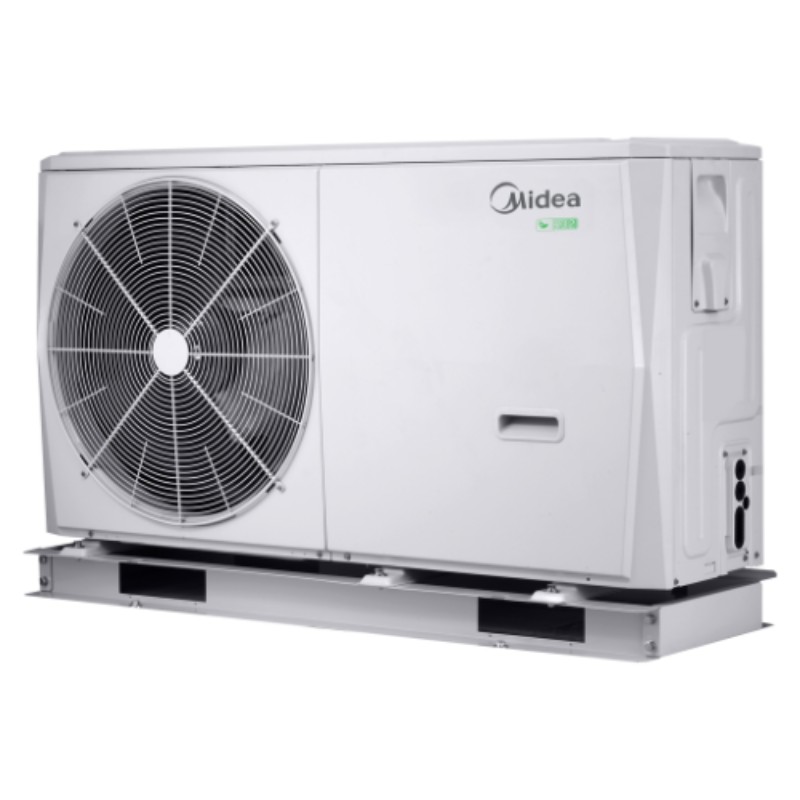

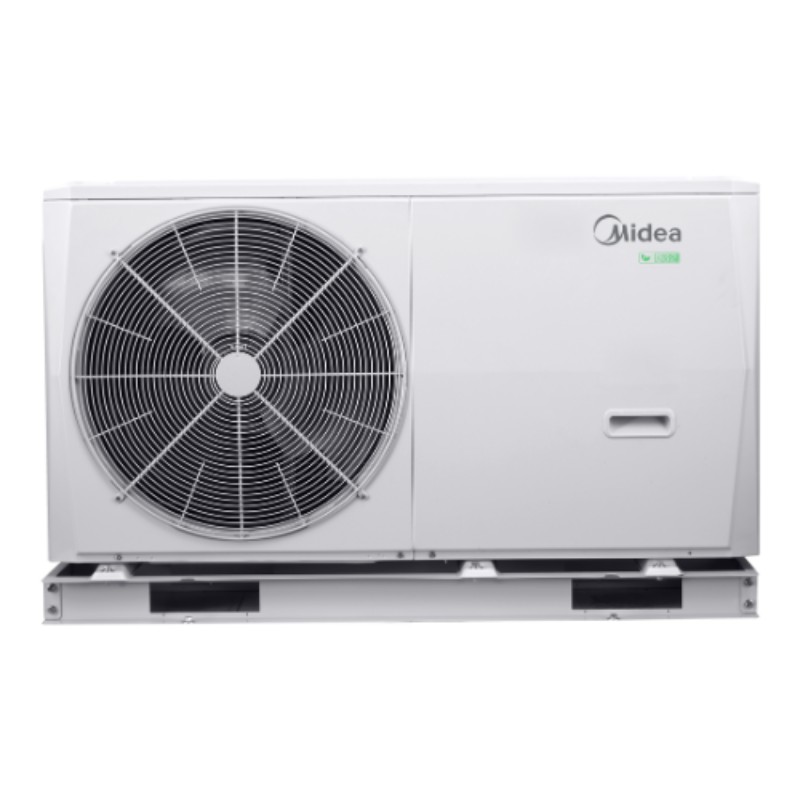

Midea's M-Thermal 6kW monobloc air source heat pump is perfect for smaller residential applications, able to meet all heating needs as well as the production of domestic hot water.
This unit has a silent operation mode for home comfort as well as high efficiency with energy class A+++ (35°C) or A++ (55°C). The outdoor unit comes with a range of components built in such as the control board and primary pump for ease of installation.
Heat Pump Specifications
Nominal capacity
6.35kW
Norm output W45/A-5
5.09kW
Compressor type
Twin Rotary
Refrigerant type
R32
Refrigerant volume
1.40kg
Operation range (Q)
6.67-20.83 L/min
Minimum water volume
40 L
Product Details
Product code
MHC-V6W/D2N8-B
Max flow temp
65°C
Min operating temp
-25°C
Max operating temp
35°C
Electrical supply
220-240V
Sound power level
58 dB(A)
Water In/Out
BSPP 1" male
Product Dimensions
Height
718mm
Width
1295mm
Depth
426mm
Net weight
86.0kg
Shipping weight
109.0kg
Certified SCOPs
@35°C
4.77
@40°C
4.42
@45°C
4.06
@50°C
3.72
@55°C
3.39
