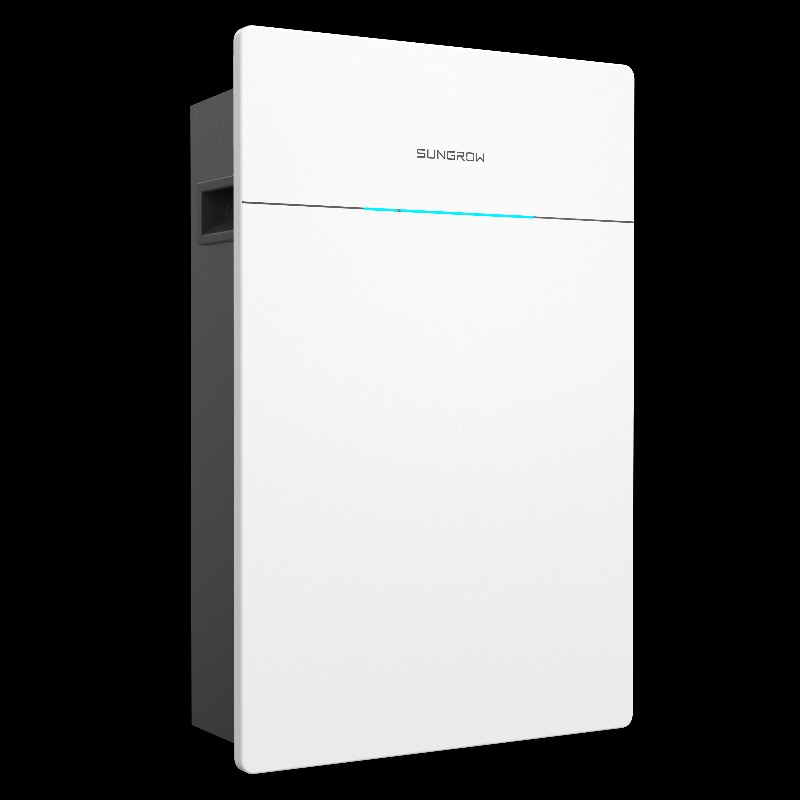

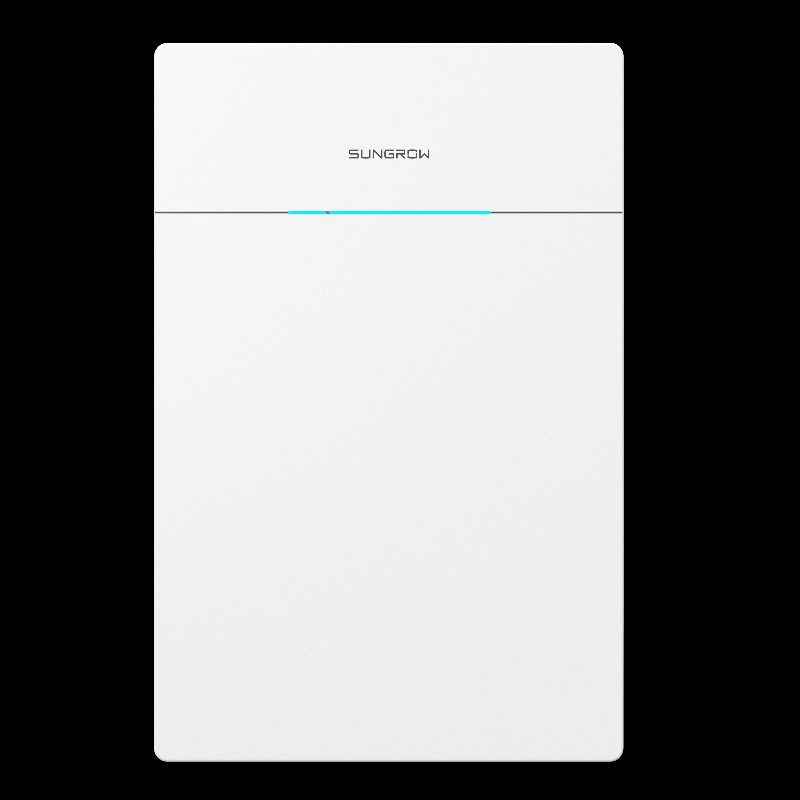

Introducing the all new SBS050 5kWh battery from Sungrow!

This 5kWh battery really packs a punch, scalable (upto 20kWh) high discharge rates and safe technology makes these HV LFP batteries a smart choice.

Specification-

• Single module supports 5kW off grid output Up to 100 % usable energy
• Lithium Iron Phosphate (LFP) Cell
• Refined battery management
• Supports 1-4 modules parallel (20.48kWh)
• No need to use a junction box for expansion
• Slim design with a depth of only 182mm
• Plug and play design

Follow this link here for our 5m lengths of 10mm2 DC Reel, which is recommended for battery installation.

If cascading multiple batteries in a front-to-back battery arrangement, please note that the accessory brackets must be purchased separately. Two sets are recommended per battery as per Sungrow's User Manual (page 14)

_{One SBS050 is capable of charging and discharging at maximum 30A when connected with an SHRS.}

_{Multiple batteries in daisy chain only increase the capacity and not the power output.}

_{We recommend the backup loads to be lower or equal than 3 kW resistive load and installing the whole house behind the backup of the inverter is not recommended.}
