Midea M-Thermal Arctic 4kW R290 Monobloc
R290
Log in or register for trade discounts!
Quantity:BUY!

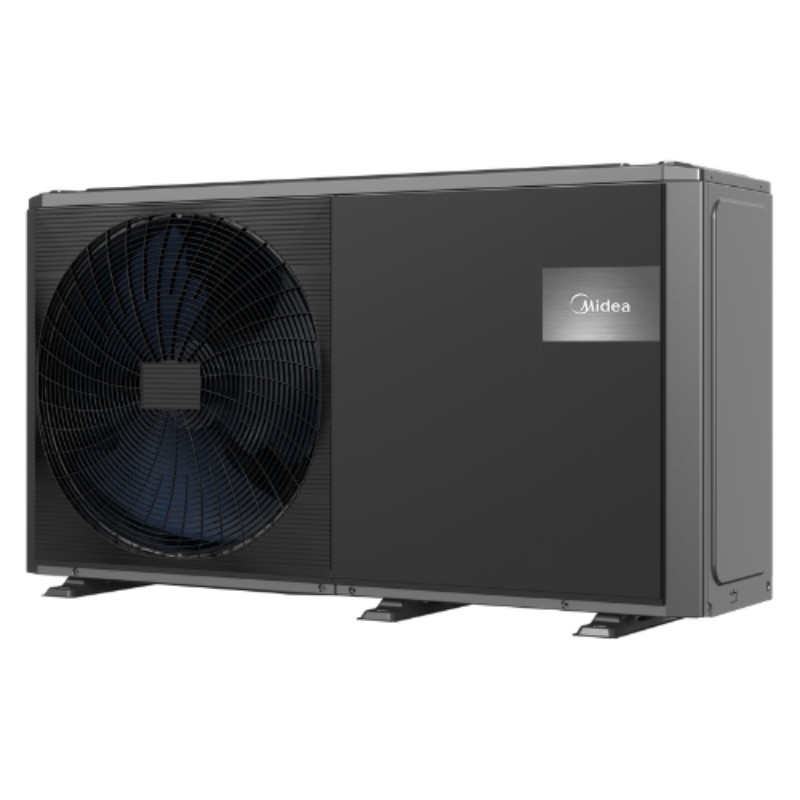

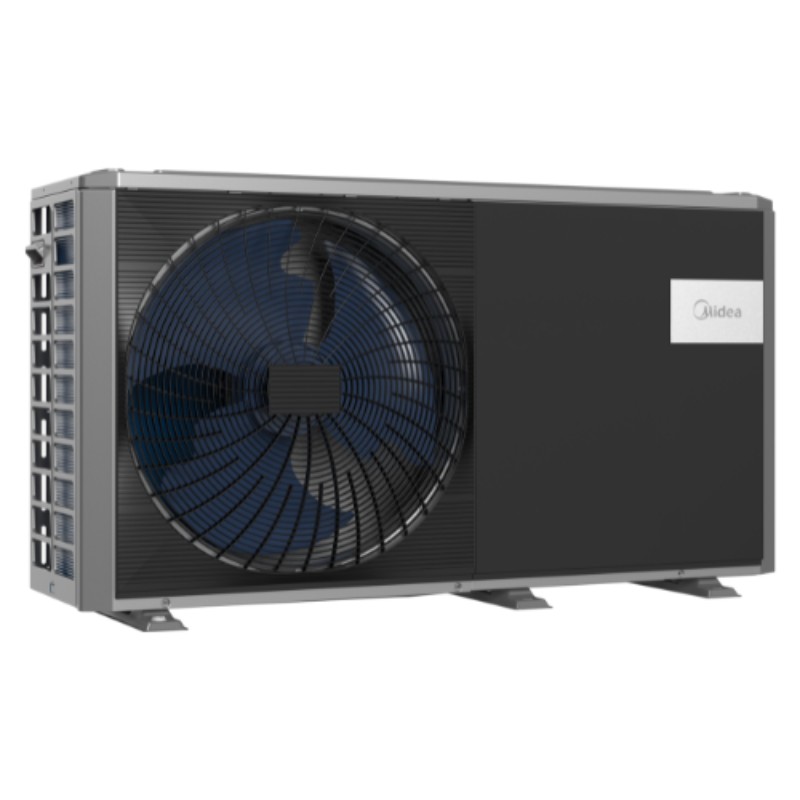

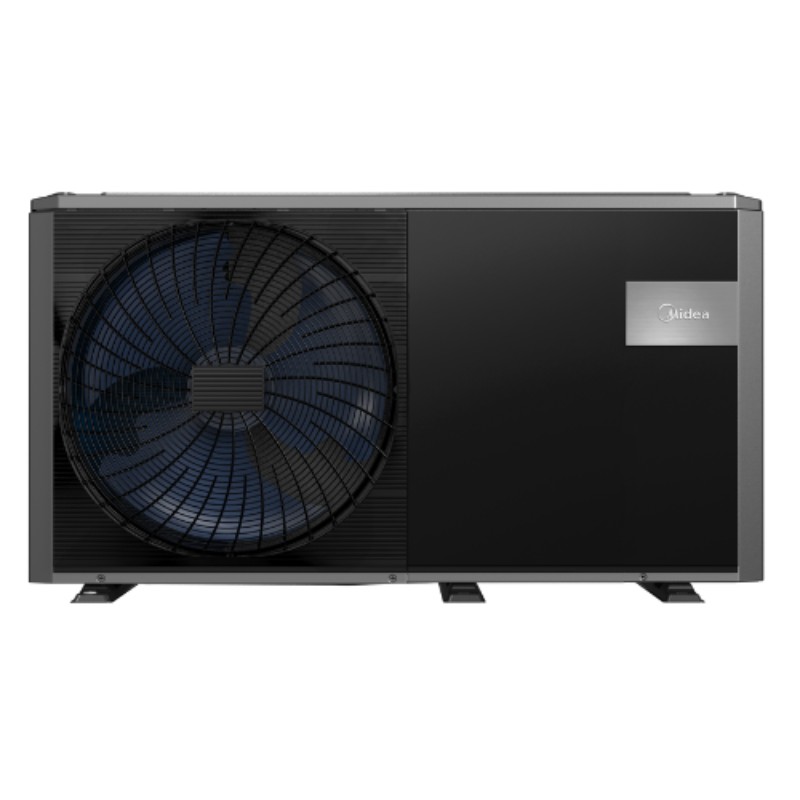

Midea's M-Thermal Arctic 4kW R290 monobloc air source heat pump is perfect for small residential applications, able to meet all heating needs as well as the production of domestic hot water.
This unit has a silent operation mode for home comfort as well as high efficiency with energy class A+++ (35°C) or A++ (55°C). The outdoor unit comes with a range of components built in such as the control board and primary pump for ease of installation.
Key Features
- Low GWP R290 Refrigerant
- Efficiency 491%, rated at 4.91 (Coefficient of Performance @35°C) making it one of the most economical heat pumps on the market
- Compatibility Radiator and Underfloor Heating Systems compatible
- Intuitive control Smart weather compensating controls
- Monobloc technology Enables easy installation and servicing
- Fast Domestic hot water: hot, efficient, and fast re-heat times
- Flow temperatures up to 75°C
Heat Pump Specifications
Nominal capacity
4kW
Output at W45/A-7
4.50kW
Compressor type
Twin Rotary
Refrigerant type
R290
Refrigerant volume
0.7kg
Operation range (Q)
6.67-15 L/min
Minimum water volume
40 L
Product Details
Product code
MHC-V4W/D2N7-B
Max flow temp
75°C
Min operating temp
-25°C (outdoor)
Max operating temp
46°C (outdoor)
Electrical supply
220-240V
Sound power level
56 dB(A)
Water In/Out
BSPP 1" male
Product Dimensions
Unit dimension (W×H×D)
1299×717×426mm
Packing dimension (W×H×D)
1375×885×475mm
Net weight
90.0kg
Shipping weight
110.0kg
Certified SCOPs
@35°C
4.91
@40°C
4.6
@45°C
4.29
@50°C
3.98
@55°C
3.67
