Huawei SUN2000-5K-LB0 Smart Inverter SP
LBO
Log in or register for trade discounts!
Quantity:BUY!
tell me more

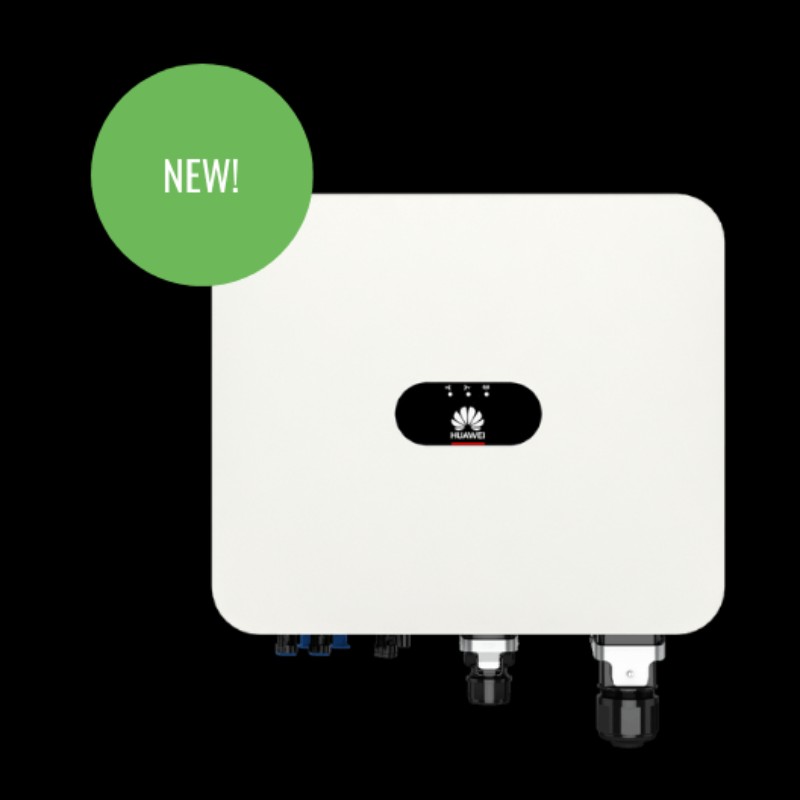

The Huawei SUN2000-5K-LB0 is a battery-ready hybrid inverter optimised for modern PV systems.
With two MPP trackers and a maximum efficiency of 97.8%, it offers high energy yield and flexibility.
It is compatible with Huawei LUNA2000 storage systems, supports intelligent load control and maximises self-consumption. Thanks to its natural convection, compact design (<15 kg) and IP66 protection class, it is efficient, robust and weatherproof - ideal for single-phase PV systems with battery storage.
AC attributes
Max power
5000W
Max current
25A
Number of phases
1DC attributes
Panels:
Number of MPPT
2
V range of MPPT
40 - 560V
Max power
7500W
Max current
20A
Max voltage
600V
Start up voltage
50V
Batteries:
Max power
5 kW*
Max current
14.2A
Battery types
Lithium
System
Max efficiency
97.8%
IP rating
IP66
Built in protection**
AC and DC surge protection Type II, arc fault
Export limitations
Possible using CT or meter
Weight
<15kg
Dimensions
425x376.5x150mm
Communication
RS485, WLAN, (Ethernet, 4G optional)
Warranty (extensions)
10 years
Key features
AI Self leaning new arc detection
Real-time data at anytime and anywhere
Performance data back-up
Smart I-V Diagnosis
*Features-
Increased safety through AFCI
- Extended arc detection with a range of 200m for maximum protection
Maximum efficiency
- Up to 97.8 % efficiency for maximum solar energy yield
Battery-Ready & Smart Energy Management
- Direct integration with Huawei LUNA2000 storage systems for a maximum self-consumption rate
Optimised communication
- Faster RS485 data rate for an improved network connection and more stable performance
