Staubli

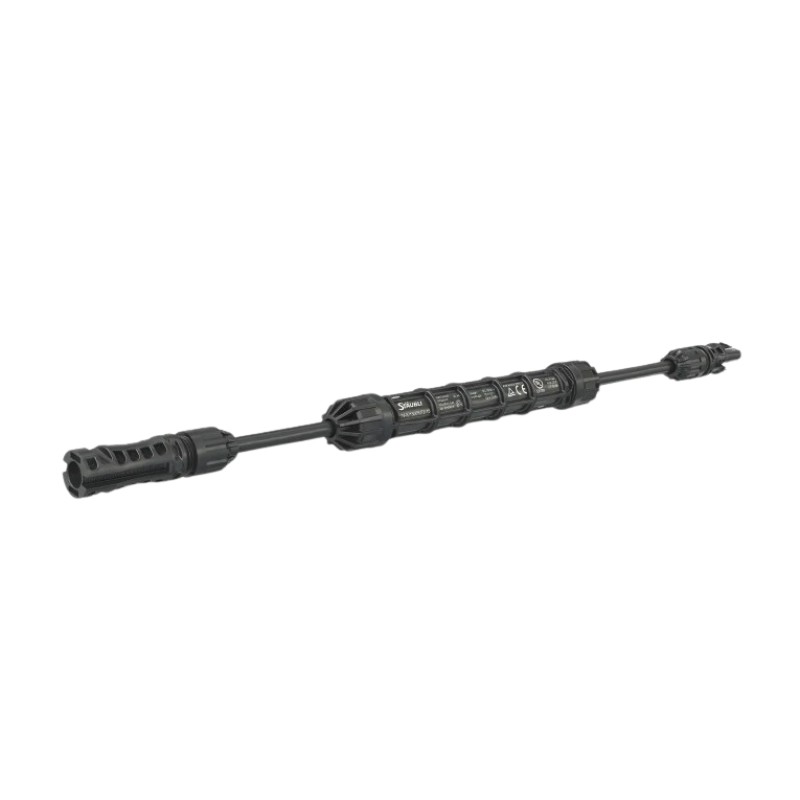

20A in-line fuses with official MC4 connectors make adding them to a system as easy as possible. The in-line fuse PV-K/ILF with a crimping connection guarantees a long-lasting, stable connection in comparison to conventional clip-in clamps:

• Minimal energy loss, low heat generation
• Robust housing, safety class IP68
• Cable cross section 10 AWG/6 mm²

String fuses are required in arrays with more than 2 strings (i.e., 3 or greater) and are typically not required in a domestic installation.

Technical Specifications
1500V
20A

Part code: 32.0427

32.0427-0067UL (PV-
K/1500ILF2-20/6E0067UL)
