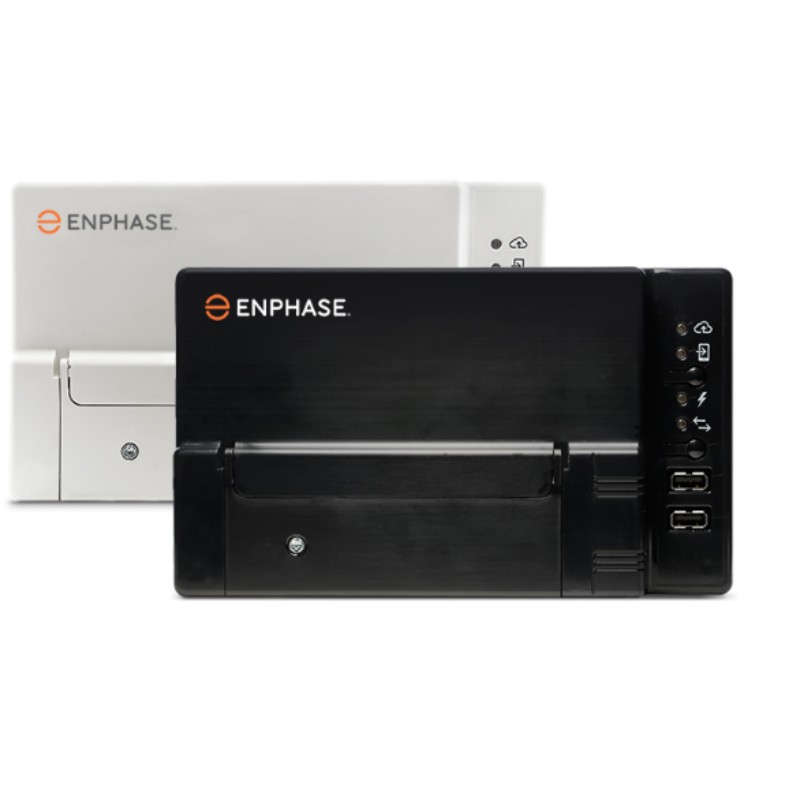

The Enphase IQ Gateway Metered is an integral component of the Enphase Microinverter System. It operates between the Enphase Microinverters and the Enphase Enlighten web-based monitoring and analysis software. The IQ Gateway monitors the microinverters that are connected to the PV modules.

It collects energy and performance data from the inverters over on-site AC power lines and then forwards the data to Enlighten to give statistical data on how a solar PV system is performing. For guidance on installation

please read the Installation Sheet.

IQ Gateway Metered - This model has all the functionality of the IQ Gateway Standard but includes a built in meter and allows CT clamp connection. This makes it's output power tracking more accurate and allows property power consumption data to be visualised on the monitoring. It also allows the system to be "battery ready", meaning that all sensing hardware is already in place so Enphase battery modules can be added easily in future.

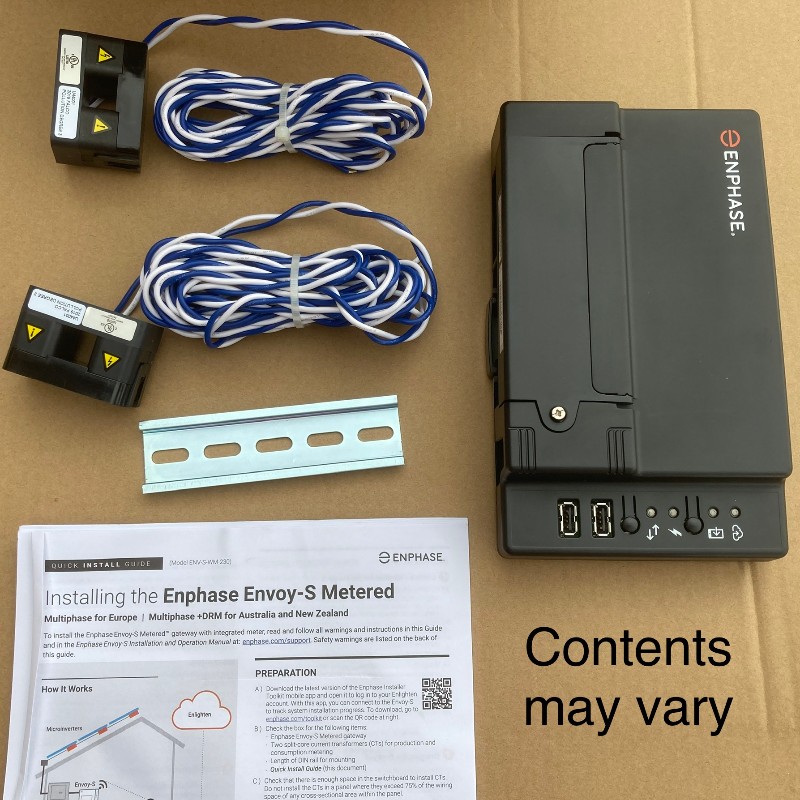

Metered version with ct clamps.

CT clamp cable length approx 3.8m

Model: ENV-S-EM-230

Please note that the IQ Gateway metered now comes with CT clamps for 16mm meter tails and below only.

Previously know as the Enphase Envoy-S Metered UK

ENV-S-EM-230

Enphase IQ Gateway Metered UK
