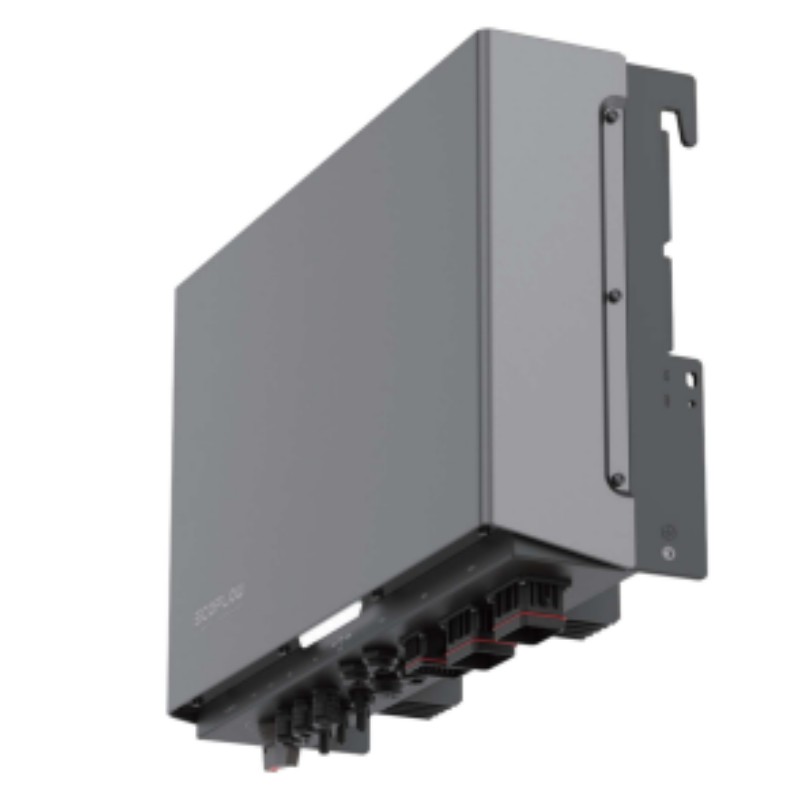

EcoFlow PowerOcean 10kW Hybrid 3ph Inverter BUNDLE w/ Meter, Junction Box and Base

3ph Hybrids

Log in or register for trade discounts!

Quantity:
BUY!

Innovation for Easy Power Independence!


The EcoFlow PowerOcean redefines home energy storage with an advanced safety system, LFP battery tech, a fire prevention module, and an IP65-certified design. The EcoFlow PowerOcean comes with a 15-year warranty, with batteries expandable up to 45kWh while offering over 6,000 charge cycles. The EcoFlow PowerOcean is a secure, scalable, and future-proof power investment for your home.

From snug homes to expansive residential houses, PowerOcean embodies adaptability, ensuring energy expansion is as simple as plug-and-play, even in the future.

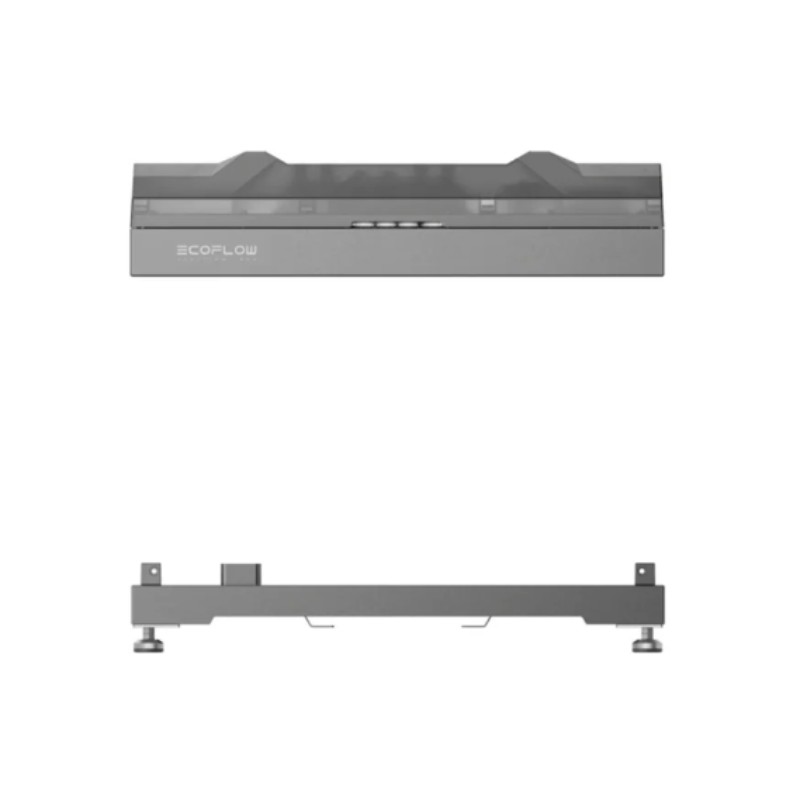

The Base and Junction Box can stack a maximum of 15kWh capacity, which is 3 batteries - an additional Junction Box and Base set is required for each additional Stack of 3 batteries up to a max of 45kWh.


AC attributes
Max power:
10kW
Max current:
14.4A
Number of phases:
3
DC attributes
Max PV power
14kW
Max Isc
24A
Max I (per MPPT)
Max no. of strings per MPPT
Max voltage
16A
1

1000V

No. of MPPTs
MPPT voltage range
Start-up voltage
2
200-850V
160V
System
Max efficiency
97.6%
IP rating
IP65
Weight
29.65kg
Dimensions
670 * 508 * 356mm
Key features
  • Keep track of your power usage, solar input, and battery storage in real-time through the user-friendly EcoFlow App and Web Portal.
  • Batteries expandable up to 45kWh while offering over 6,000 charge cycles.
  • 15-year warranty.

    • Included:

    • PowerOcean 10kW Hybrid Inverter x 1
    • 3 phase smart meter EFA-ADL400N-CTD16 (added separately)
    • Ecoflow PowerOcean Battery Base and Junction Box (added separately)
    • Mounting bracket x 1
    • Trim cover x 1
    • Smart meter x 1
    • PV terminals x 2
    • Communication terminal x 2
    • Communication connector x 1
    • Grid connector x 1
    • Backup connector x 1
    • Expansion bolt(M6*60) x 4
    • Screws(M5*12) x 2
    • MC4 Disassembly and
    • Assembly Tool x 1
    • OT terminal x2
    • Tubular Terminal(For wire gauge
    • 10AWG/6mm) x 10
    • Tubular Terminal(For wire gauge
    • 22AWG/0.5mm) x 5
    • Tubular Terminal(For wire gauge
    • 18AWG/1mm) x 6
    • Tubular Terminal(For wire gauge
    • 26AWG/0.25mm) x 3
